Horizon 5000W PEM Fuel Cell

SKU: FCS-C5000.
Brands: .
Price: $19,141.00
Quantity:
- +
  • Description
  • Technical Details
  • Reviews (0)

Product Description

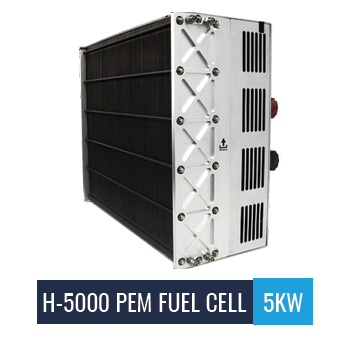

The Horizon H-5000 PEM Fuel Cell is a 5 kW, air fed / air cooled, self-humidified hydrogen fuel cell. Because this fuel cell is air cooled there is no need for large, complicated, and expensive water cooling systems.

Horizon H-Series PEM fuel cells are semi-integrated, efficient, reliable systems that minimize the use of peripherals. As such, they are the most compact and lightweight fuel cells around the world.

Includes:

✔ Connections/Tubing
✔ Electronic valves
✔ Electronic control box
✔ 5kW stack with blower
✔ Fuel cell ON/OFF switch
✔ SCU ON/OFF switch

Typical lead time of 8 weeks expected.

Technical Details

Weight 67 lbs
Dimensions 14 x 26 x 10 in
Number of Cells

120

Rated Power

5000W (5kW)

Rated Performance

72V @ 70A

Hydrogen Supply Valve Voltage

12V

Purging Valve Voltage

12V

Blower Voltage

12V

Reactants

Hydrogen and Air

Ambient Temperature

5 – 30 C; (41 – 86 F;)

Max Stack Temperature

65 C (149 F)

Hydrogen Pressure

0.45 – 0.55 Bar

Humidification

Self-humidified

Cooling

Air (integrated cooling fan)

Controller Weight

2500g (± 100g)

Stack Weight (with Fan & Casing)

30kg ± 200g

Hydrogen Flow Rate at Max Output

65 L/min

Stack Size

350 x 212 x 650mm (13.8″ x 8.3″ x 25.6″)

Hydrogen Purity Requirement

≥ 99.995% (dry H2)

Start up time

≤ 30s (ambient temperature)

Efficiency of System

40% at 72V

Low Voltage Protection

60V

Over Current Protection

90A

Over Temperature Protection

65 C

External Power Supply

24V (±1V), 8A-12A
