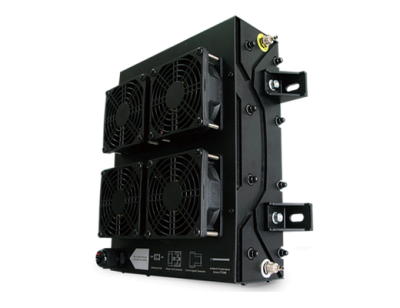

Horizon XP PEM Fuel Cell – 500W

SKU: FCS-XP500.
Brands: .
Price: $6,829.00
Quantity:
- +
  • Description
  • Technical Details
  • Reviews (0)

Product Description

XP-SERIES PEM FUEL CELL 500W

In collaboration with SHELL Eco-marathon champions, Horizon has developed several generations of what would be considered the “ultimate” system aimed at maximizing the opportunity for podium placement. Customers of XP systems in the past 2-3 years have all achieved excellent rankings, including first, second and third place, in some cases, consecutively. Our latest generation H-1000XP has recently achieved a peak efficiency reaching up to 59% during real test with one of the teams in Asia. The system has been oversized and hydrogen purging frequency and duration have been greatly reduced.

For the best tech support possible, we will connect you with our ex-champions to provide real support on fittings, connectors, and accessories you will need – all of which are designed to meet the requirements and regulations of the Eco-marathon event.

Features:
✔ Efficient: greatly reduced H2 fuel consumption
✔ Plug and play, easy to integrate
✔ Lower weight, smaller size-new materials
✔ Compliant with new Eco-marathon rules

Includes:
✔ H-500 stack with blower
✔ Hydrogen supply valve
✔ Hydrogen purge valve
✔ Fuel cell controller
✔ Manual
✔ PU tube
✔ Over current protection
✔ Low voltage protection
✔ Over temperature protection
✔ Emergency shut down switch
✔ Self sustainable function

Technical Details

Weight 14 lbs
Dimensions 5 x 12 x 4 in
Number of Cells

30

Rated Power

500W (600W Peak)

Rated Performance

21V @ 23.8A

External Temperature

5 – 35˚C (41 – 95˚F)

Reactants

Hydrogen and Air

Max Stack Temperature

65 C (149 F)

Hydrogen Pressure

7.2 – 9.4 PSI

Humidification

Self-humidified ,10 – 95% RH Non-condensing

Cooling

Air (integrated cooling fan)

Stack Weight (with Fan & Casing)

5.8 kg (12.8 lbs)

Hydrogen Flow Rate at Max Output

5.86 L/min

Stack Size

150 x 203 x 52 mm (5.9″ x 8.0″ x 2.0″)

Hydrogen Purity Requirement

≥ 99.995% (dry H2)

Efficiency of System

56% (Peak)

External Power Supply

13.5V (Start Up Battery)
