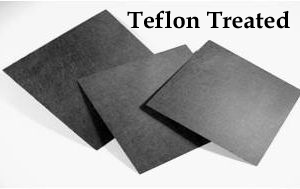

Teflon Treated Carbon Paper
Carbon Paper AvCarb MGL190
AvCarb® MGL190 is a superior carbon paper for fuel cell and electrolyzer applications. MGL190 demonstrates advantages over industry standard products such as Toray 060, indcluding:
MGL190 is very similar to Toray Carbon Paper 060.
| Weight | lbs |
|---|---|
| Dimensions | 0.000 × 0.000 × 0.000 in |
| Thickness (um) | 0.19 mm (190 microns) at 50kPa |
| Bulk Density | 0.44 g/cm3 |
| Fiber Type | Molded Graphite Laminate |
| Porosity | 78% |
| Tensile Strength (N/cm) | 65 |
| Flexural Strength | 45 MPa |
| PTFE Treated | Yes |
| Flexural Modulus (GPa) | 15 |
| Micro Porous Layer (MPL) | None |
| Gas Permeability (ml*mm / (cm2*hr*mmaq)) | 1900 |
| Electrical Resistivity (Through-Plane) | 75 m’ Ωcm |
| Gas Permeability (Gurley sec) | 2.2 |
| Wet Proofing | 5% Wet Proofing, 10% Wet Proofing, 20% Wet Proofing, 30% Wet Proofing, 40% Wet Proofing, 50% Wet Proofing |
| Size | 10cm x 10cm, 20cm x 20cm, 40cm x 40cm |
